Enlarge image ↗Unions / 241 / 242 / 243 / 244 / 245
Union
Product Description
Union fittings for easy installation. Material-specific connection options are shown in the dimensional sheets.
Technical Specifications
| Available Materials | PVC-U, PVC-C, PP-H, PVDF, HDPE |
|---|---|
| Size Range | DN15–DN100 (1/2"–4") |
| Sealing ring | EPDM or FPM |
| Standard | DIN, ANSI, JIS; varies by material |
Technical Drawings & Dimensional Tables

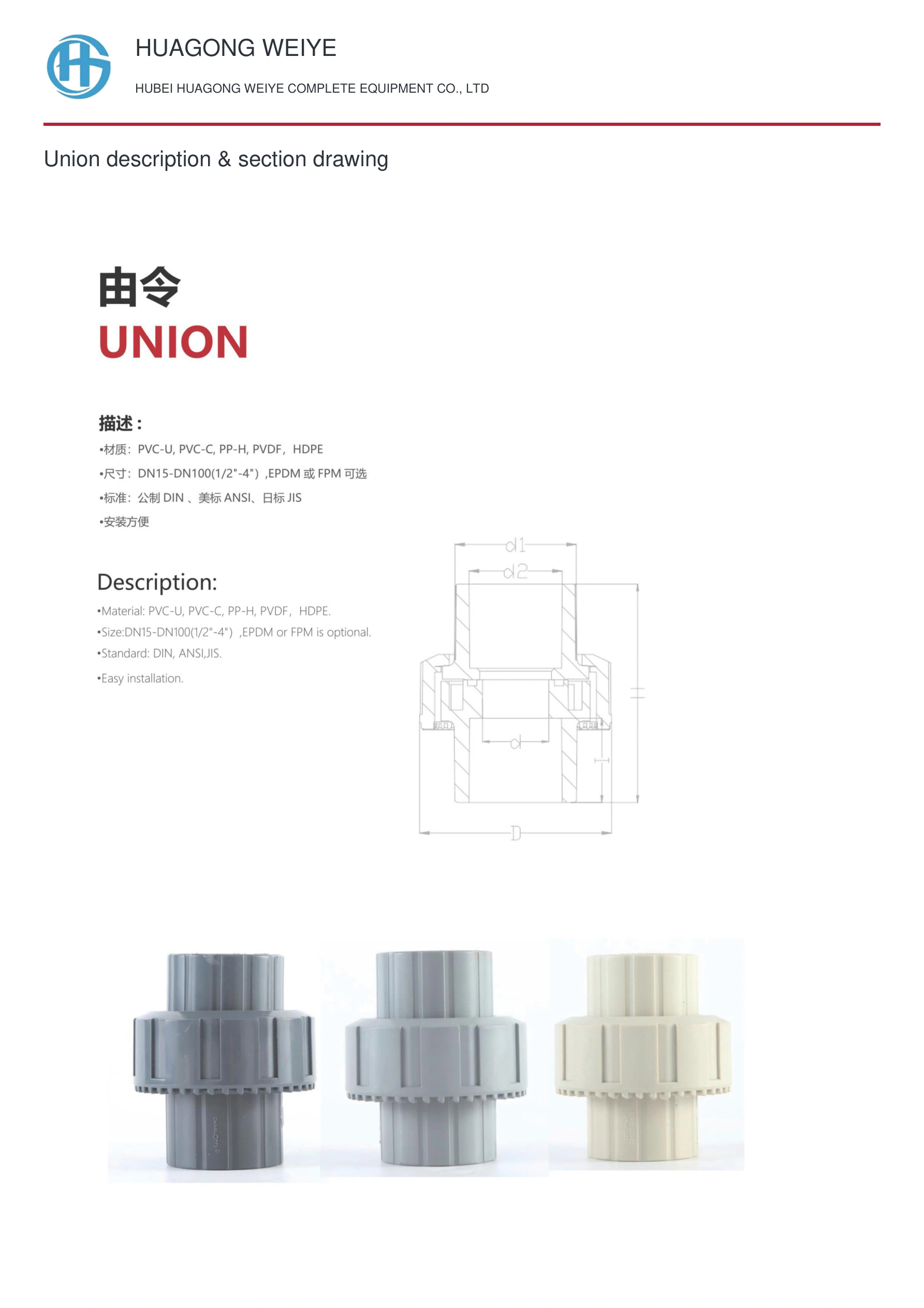

Union description & section drawingExpand technical sheet

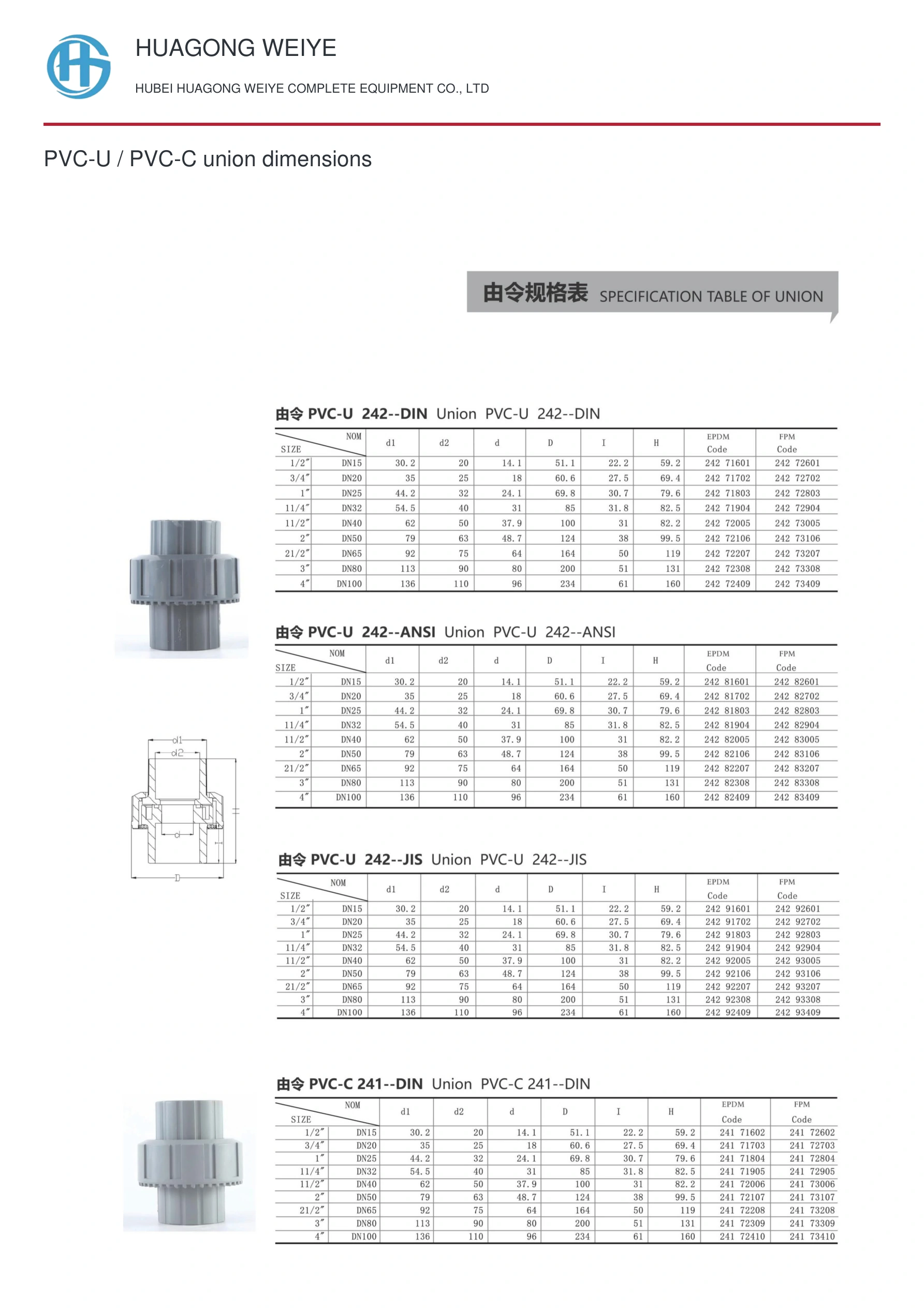

Enlarge image ↗PVC-U / PVC-C union dimensionsExpand technical sheet

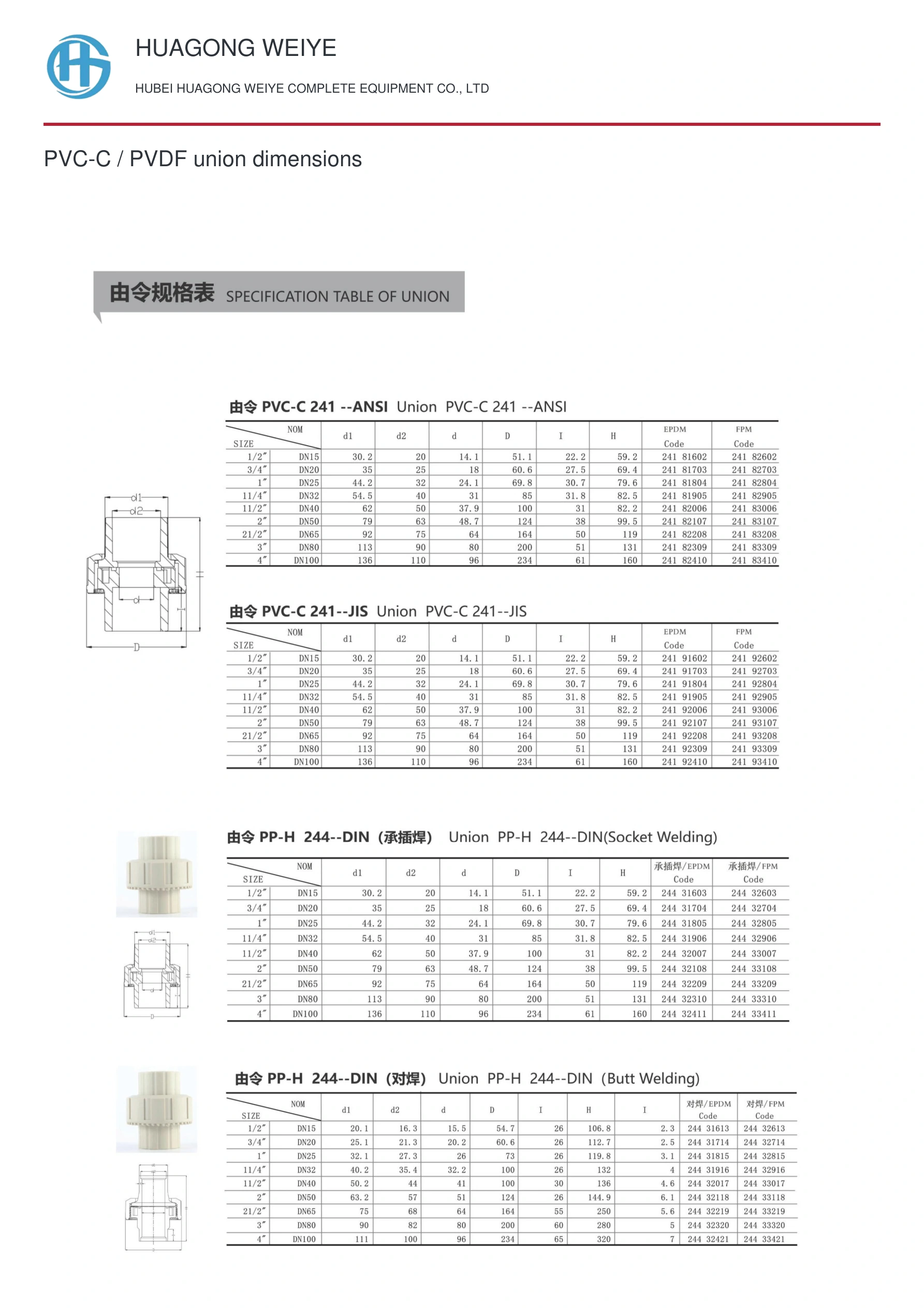

Enlarge image ↗PVC-C / PVDF union dimensionsExpand technical sheet
Enlarge image ↗
