Enlarge image ↗Flanges / 155 (catalog order-code family)
One-piece Flange
Product Description
One-piece flange with material-specific dimensional tables.
Technical Specifications
| Available Materials | PVC-U, PVC-C, PP-H, PVDF |
|---|---|
| Size Range | DN15–DN150 (1/2"–6") |
| Standard | DIN, ANSI, JIS; varies by material |
Technical Drawings & Dimensional Tables

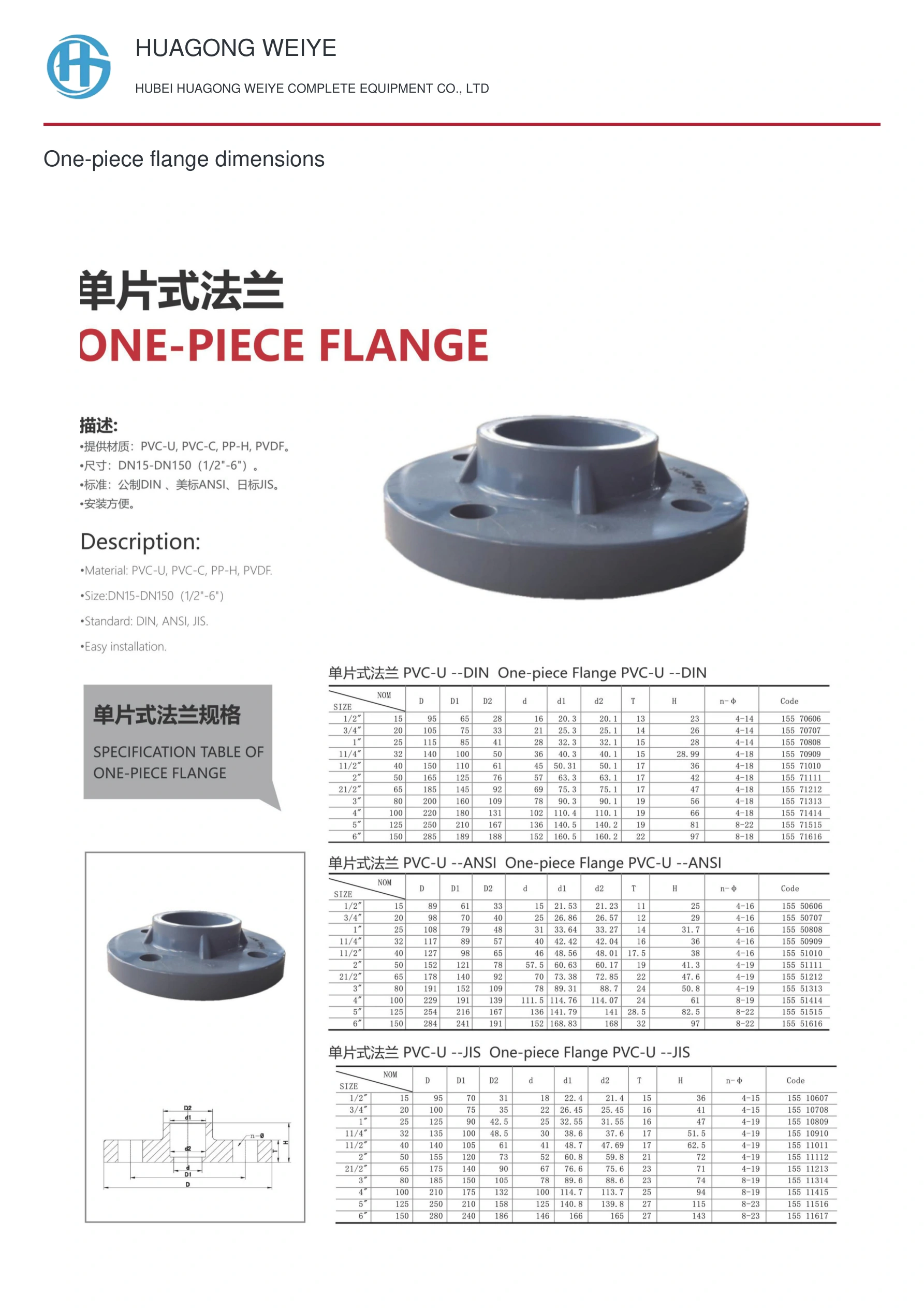

One-piece flange dimensionsExpand technical sheet

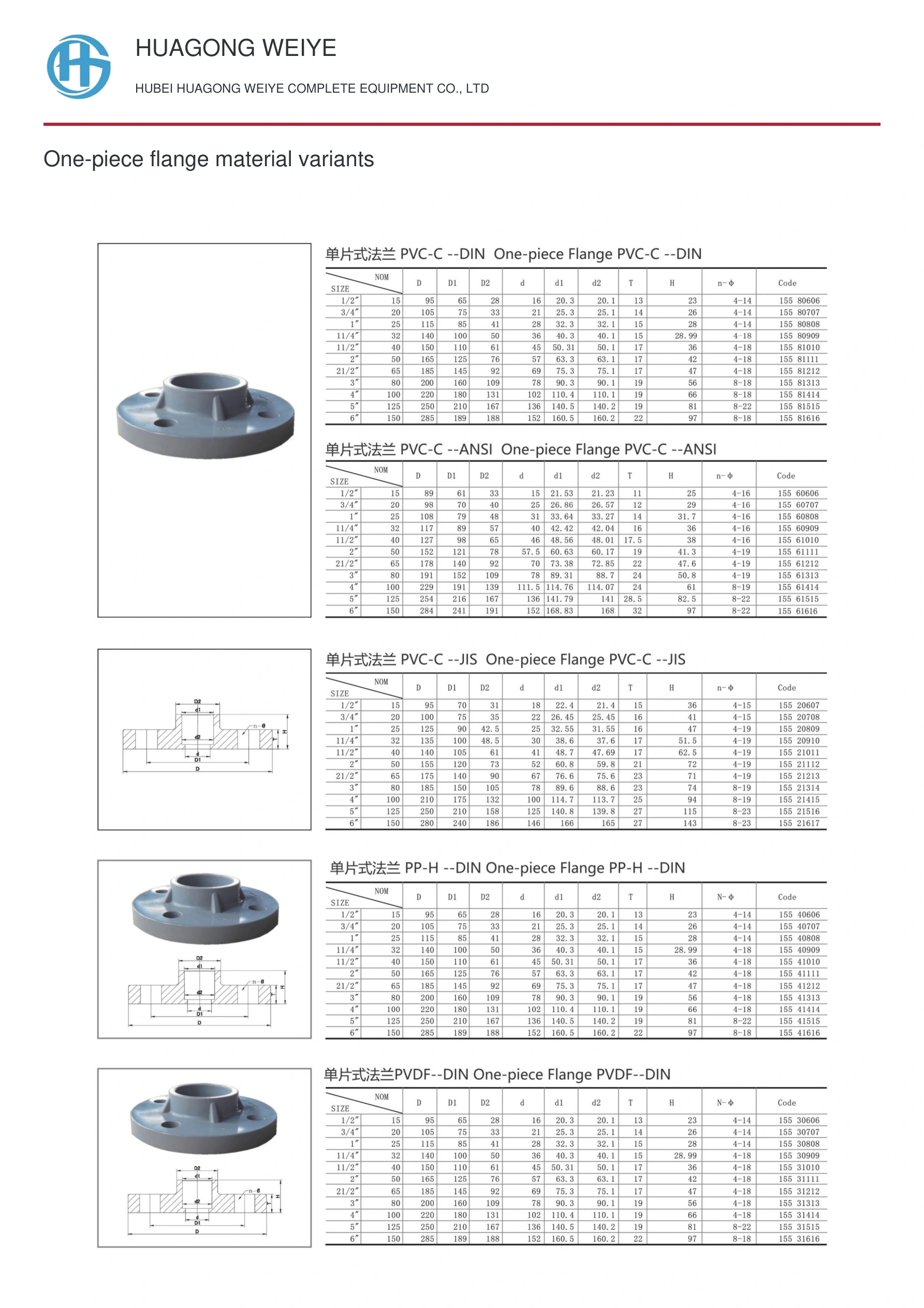

Enlarge image ↗One-piece flange material variantsExpand technical sheet
