High Pressure Ball Valve
Product Description
High Pressure Ball Valve. Available with manual,pneumatic actuator,electric actuator.
Technical Specifications
| Size Range | DN15-DN300 |
|---|---|
| Body material | WCB,SS |
| Ball material | 304,316,316L |
| Seat material | PTFE,PEEK |
| Pressure Rating | Class300,PN40,PN63,PN100 |
| Operation | Manual,Pneumatic actuator,Electric actuator |
| Pneumatic actuator | Aluminum; lightweight; long service life (catalog description) |
Applications
Condensate , Desalination ,High pressure RO,Chemical,Marine engineering for high-pressure spray and gas isolation system
Technical Drawings & Dimensional Tables

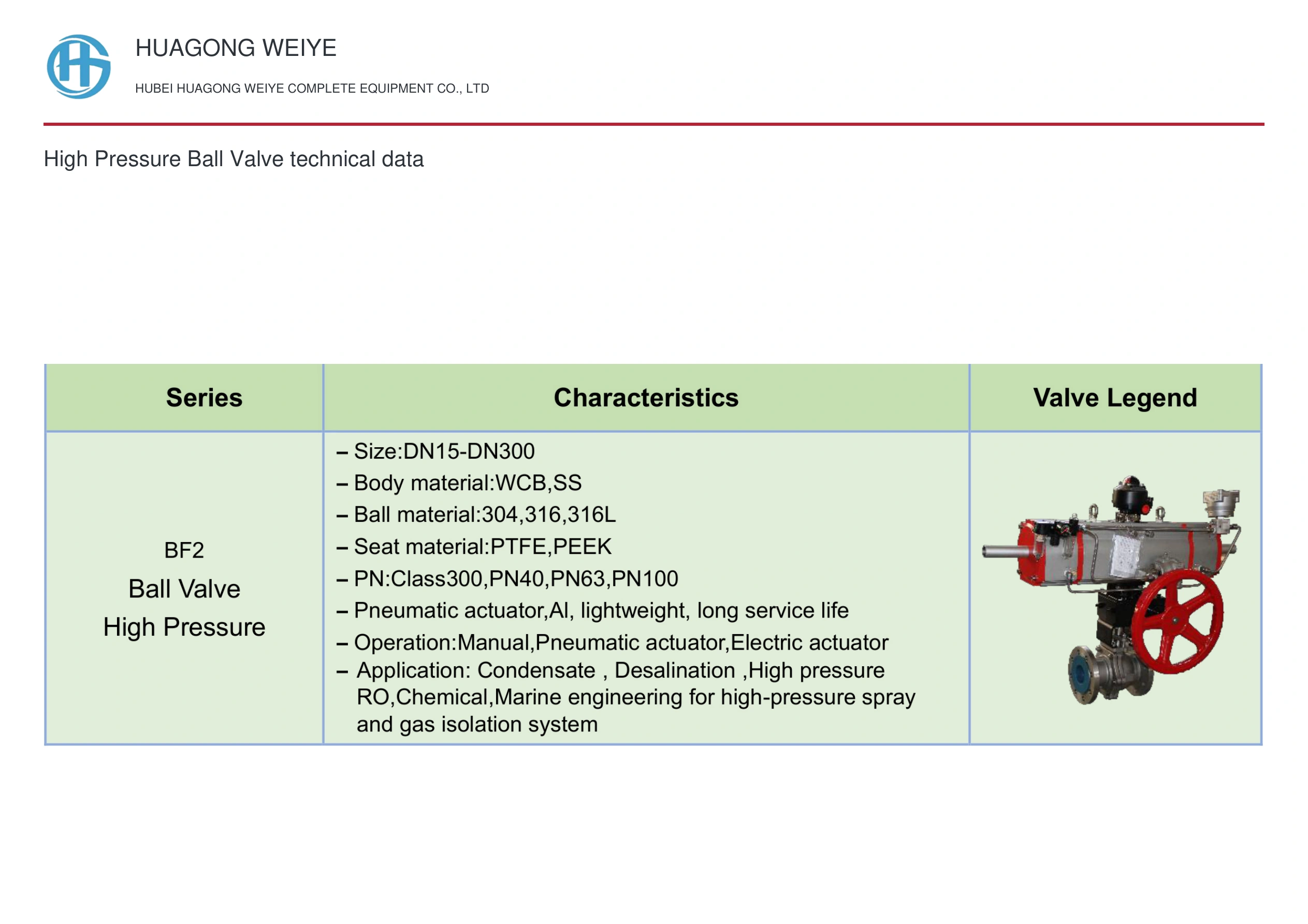

High Pressure Ball Valve technical dataExpand technical sheet
