Enlarge image ↗Butterfly Valves / Z1
Large-diameter Butterfly Valve
Product Description
Large-diameter Butterfly Valve. Available with manual,pneumatic actuator,electric actuator.
Technical Specifications
| Size Range | DN700-DN2200, other size on request |
|---|---|
| Body material | GGG40.3,WCB |
| Disc material | 304,316,GGG40.3 |
| Seat material | EPDM,NBR |
| Pressure Rating | PN10 |
| Connection | Double Flange |
| Operation | Manual,Pneumatic actuator,Electric actuator |
Applications
Water supply,Sewage,Circulating water,fresh water treatment for sewage and drainage with big sizes
Technical Drawings & Dimensional Tables

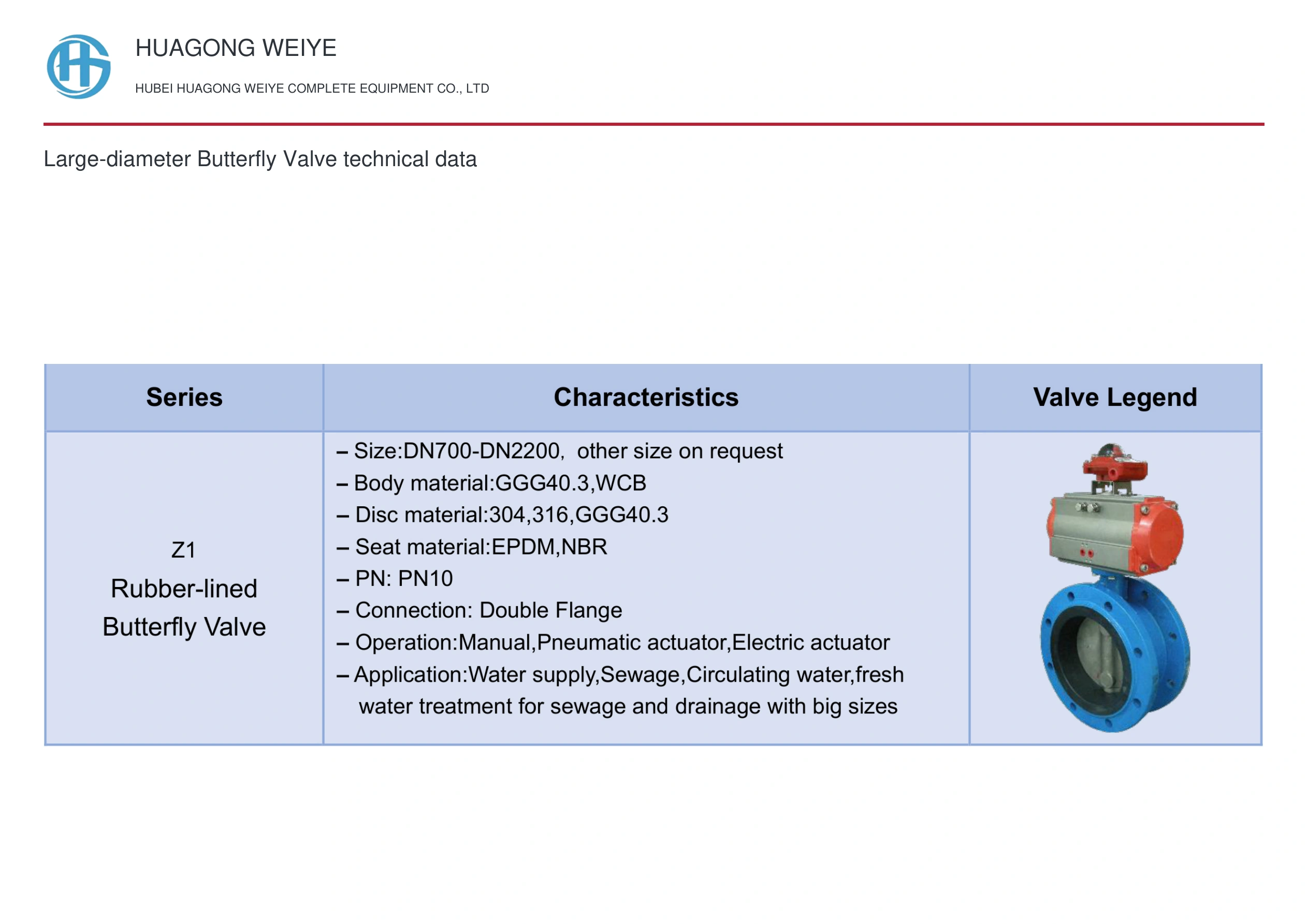

Large-diameter Butterfly Valve technical dataExpand technical sheet
